Motorcycle Troubleshooting Flowchart

September 26, 2021 Post a Comment

Forum donations are gratefully accepted. Engine Doesnt Start Starting Difficulty.

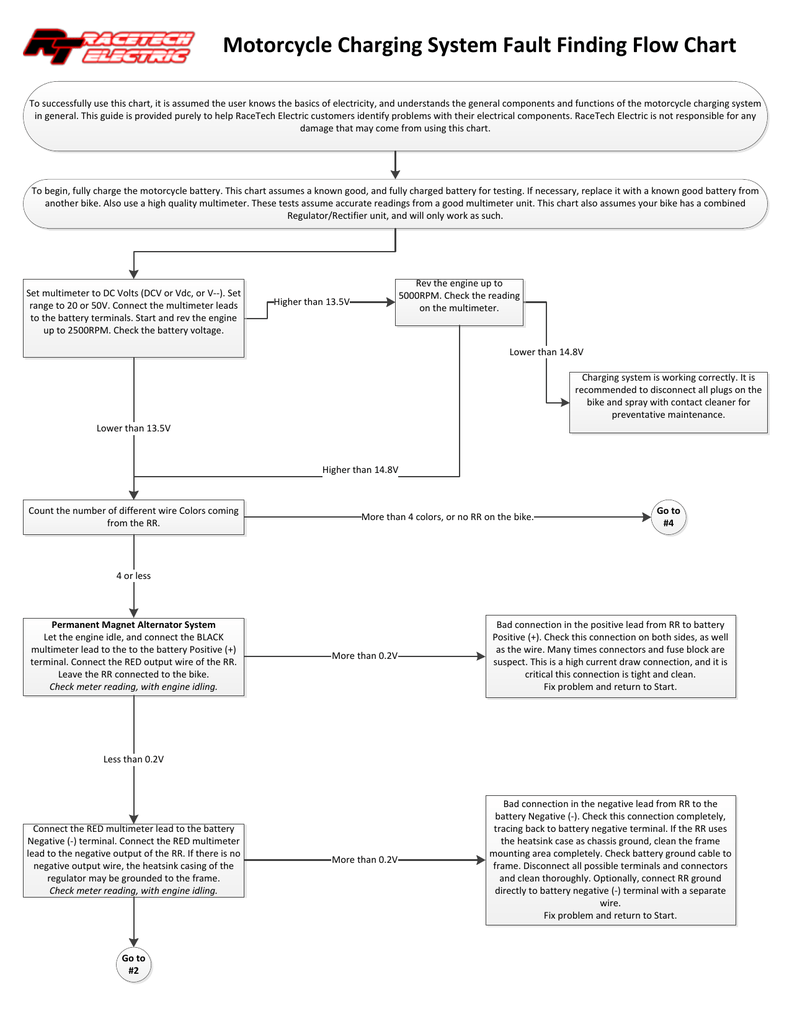

Motorcycle Charging System Fault Finding Flow Chart Manualzz

Try to service.

Motorcycle troubleshooting flowchart. Trouble Shooting Suspension Problems. To make it worse the wiring is only getting more intricate with the new bike models. Fully charge the battery.

The author cannot be held responsible for any damage that could arise from the use of this fault finding flow chart. With this ready made template flowchart is not difficult to make any more. Starter motor not.

If anyofthese are lacking theengine willnotrun. Rebound adjustment if applicable is located near the top of the fork. Charging System Flowchart to troubleshoot charging problems.

But it doesnt have to be that way. Motorcycle electrical systems have been known to strike fear even into some of the most seasoned home motorcycle mechanics. Hall Of Wisdom page and decided to share it here.

To ensure our content is always up-to-date with current information best practices and professional advice articles are routinely reviewed by industry experts with years of hands-on experience. Forum donations are gratefully accepted. Enter your motorcycle make and model to learn more about how to install a Scottoiler chain oiler system on your bike.

Also check out the Spark Plug Troubleshooting guide from our friends at NGK. TROUBLE SHOOTING Prove all things. Troubleshoot Motorcycle Electrical Problems.

When a carburetor is running lean the fuel-to-air ratio is off because the carburetor is delivering too much air. Forums Calendar Active Threads. The VR is grounded through the case so the mounting bolts must be tight.

ESystem Battery Connection and Power Consumption. Learning how to troubleshoot a motorcycles charging system can be one of the more difficult tasks to fully understand. Typical symptoms of a lean mixture are.

Use the guide below to help you do exactly that. Compare quotes fast and save money. Therefore you will have to break down each of these elements troubleshooting every one of them until you get to the root of the problem.

This is not really repair but restoration. On Mar 22 2021. Peter Quick Jaffrey NH USA.

Troubleshooting electrical problems is simply. MOTORCYCLE TROUBLESHOOTING Every motorcycle engine requires an uninter-rupted supply of fuel and airproper ignition and adequate compression. System is the weakest link of the 3 basics.

Start date Apr 24 2015 More options Export thread. More problems result from electrical breakdowns than from anyother source. There are no attachments for this article.

If theres an electrical problem on your motorcycle stay patient and use logic. Before attempting to fix a carburetor problem on your motorcycle you need to come up with the correct diagnosis. Britbike forum Forums General discussion The Rod and Tappet Motorcycle Troubleshooting Flowchart.

Quickly get a head-start when creating your own repair processing flowchart. On Jul 29 2010. Possible Problems for Motorcycle.

Gordon Gray North Carolina. At the end all I can say is the bike will return you the way you treat her yes I used HER not IT coz my bikes are my girlfriends. Youll just need to get yourself a good ohmmetermultimeter to track down what needs repair or replacement.

Compare FREE Online Quotes for Motorcycle Insurance. Motorcycle Charging System Troubleshooting Flow Chart. What You Will Need To Check.

August 2001 Buy BritBike staff a coffee Still here since 1996 serving BritBike enthusiasts. Electrical systems on motorcycles in general. A free customizable repair processing flowchart template is provided to download and print.

White or light gray spark. I myself have been days into a non-charging diagnostic scenario and a quick hammer blow to the head seemed like the more. How to fill and prime my eSystem.

If you do not have this knowledgeexperience find someone that has and let himher check the charging-system on the bike. June 2002 Buy BritBike staff a coffee Still here since 1996 serving BritBike enthusiasts. Check spark for.

Welcome to BritBike Forum. Check if the kill switch is in OFF position. Component in the circuit solenoid.

Usually you will know little to nothing of the bikes history. It is somewhat generic with tips on differences in major Japanese moto wiring being. Basic Electrical Troubleshooting - Understanding the wiring diagram and testing a simple circuit on a motorcycle ATV or even your carEvery Clymer manual co.

The use of this fault-finding chart is entirely at the risk of the user. Britbike forum Forums General discussion The Rod and Tappet Motorcycle Troubleshooting Flowchart. Check that the fuel clock is at the respective Reserve or ON position.

Hold fast that which is good 1 Thessalonians 521 Often I get in a bike that has been sitting for a number of months or years. Keep that inmind before. Check the fuel in the fuel tank fill to usable reserve if found less.

Check spark plug cap for firm fitment. Put it in ON position. Check and clean the VR mounting location whenever the VR has been removed from the motorcycle.

Thats all I can come up with Motorcycle Problems And Solutions now. Electrical problems often cause an instant phone call to schedule an appointment at the bike shop. This is my first article so please forgive my ignorance.

While this Motorcycle Troubleshooting Guide is not a complete guide of every possible cause for each problem listed it will help assist mechanics in troubleshooting some of the most common difficulties they will face. - A Troubleshooting Guide. Add this as a check on every bike that comes into your shop.

Take care of them they will never let you down. The engine diagnostics system in. We also want to spend as little as possible on this bike until we know if the engine and all.

Lets throw that illusion out start with a clean slate and learn your motorcycles charging system in the most simple and basic way possible. Backfiring as the throttle is closed primarily during coast-downs Lurching acceleration. Compression adjustment if applicable is located near the bottom of the fork.

Spring preload adjustment if applicable is generally hex style and located at the top of the fork. Portal Forums Calendar Active Threads. So what do you need to check when your motorcycle wont start.

This page will serve as a. I know I have not covered a lot of stuffs due to time restrictions. Best providers in your area.

A Guide to Troubleshooting a Motorcycle Engine Diagnostics System Written by Doityourself Staff. Name John Apr 24 2015 1 Found this flowchart on the ADVrider Orange Crush HOW. I have starting problem with my Vehicle.

Welcome to BritBike Forum.

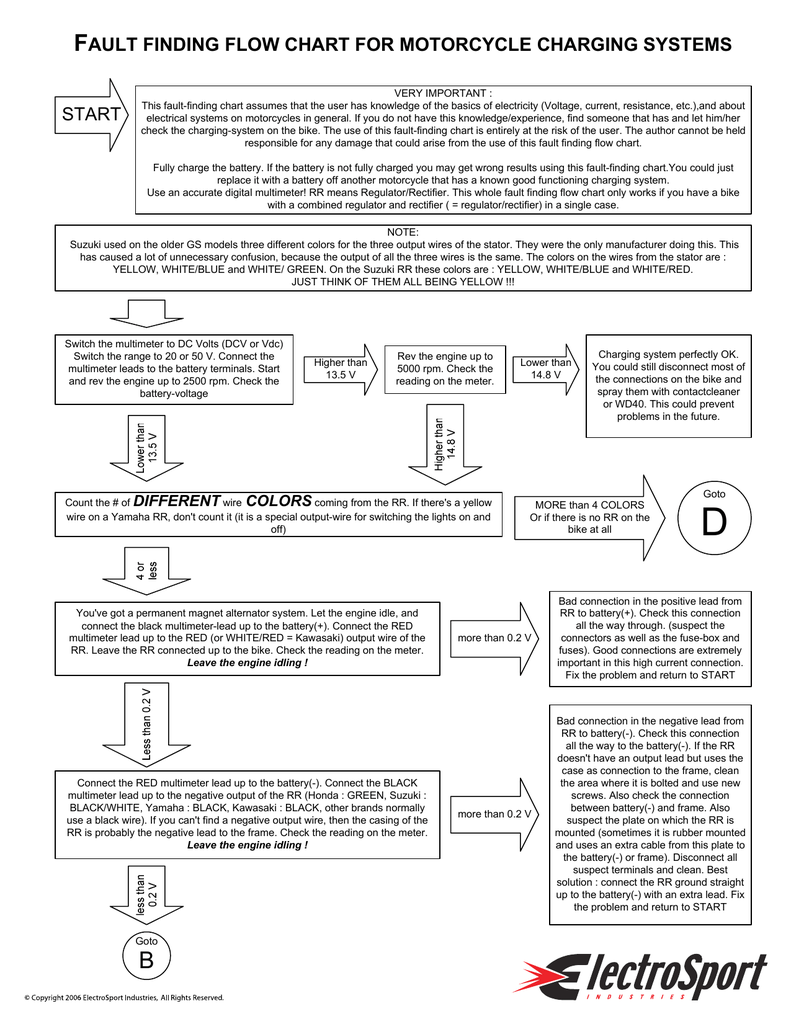

Fault Finding Flow Chart For Motorcycle Charging Systems Yamaha Xs650 Forum
